Welcome to Disk Depot

Kingston 8GB DDR3 Low Voltage SODIMM RAM Module- 1600MHz (PC3L-12800), CL11 Memory, 1.35V, DDR3L




£64.97

KG-LVR3-8-SDM
In stock
+

3 for immediate dispatch
Available for UK & Europe delivery or collection from Dundee branch. (Show)

Specifications

Series: Kingston ValueRAM
DDR Type: SODIMM DDR3
Size: 8GB
Speed: 1600 MHz
Compliance: PC3L-12800
Pins: 204-pin
CAS Latency: CL11
Data Integrity Check: Non-ECC
Low Voltage: Yes
Voltage: 1.35V
Additional Information: Unbuffered
Package Type: Blister Pack
Package Weight: 0.0690 kg
Warranty: Lifetime

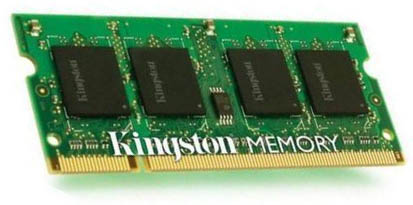

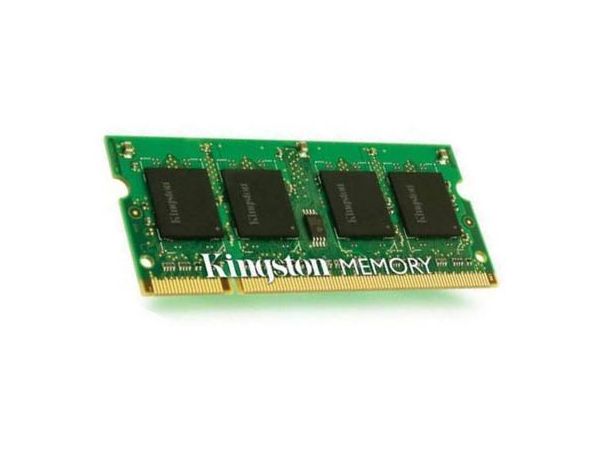

Image for illustration purposes only.

Manufacturer's Description

 ValueRAM's 1G x 64-bit (8GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 2Rx8, low voltage, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This
204-pin SODIMM uses gold contact fingers.



Features

• JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) Power Supply
• VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB: Height 1.18” (30mm), double sided component

740617219791
(?)
1
KVR16LS11/8

No posts found

Write a review
